1" Heavy Duty Lifting Chains , Crane Lifting Chains

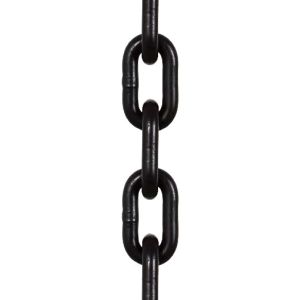

1" EN818-2 Grade 80 Alloy Steel Heavy Duty Lifting Chain, industrial lifting chain, high strength, for overhead lifting applications

Grade 80 Lifting Chain

Product Overview

We are supplying Grade 80 lifting chains which are complied with EN818-2 requirements. They are available in chain diameter from 6mm to 32mm, with working load limited from 1120kg to 31500kg.

Thanks to the high strength alloy steel and heat treatment process, the chains are recommended for overhead lifting and heavy duty lifting applications.

Main features:

- Alloy steel

- Heat treated

- Finish: black painted

- Minimum proof test load is 2 times of the working load limit.

Specification

1" Heavy Duty Lifting Chains , Crane Lifting Chains

Chain Dia.		Tolerance	P	Tolerance	Li min	Le max	f min	W.L.L	Min. Proof load	M.B.L	Weight
mm	in.	mm	mm	mm	mm	mm	mm	kg	KN	KN	kg/m
mm	in.	mm	mm	mm	mm	mm	mm	kg	KN	KN	kg/m
6	1/4	±0.24	18	±0.5	7.8	22.2	4.8	1120	28.3	45.2	0.8
7	9/32	±0.28	21	±0.6	9.1	25.9	5.6	1500	38.5	61.6	1.1
8	5/16	±0.32	24	±0.7	10.4	29.6	6.4	2000	50.3	80.4	1.4
10	3/8	±0.40	30	±0.9	13	37	8	3150	78.5	126	2.2
13	1/2	±0.52	39	±1.2	16.9	48.1	10	5300	133	212	3.8
16	5/8	±0.64	48	±1.4	20.8	59.2	13	8000	201	322	5.7
18	11/16	±0.90	54	±1.6	23.4	66.6	14	10000	254	407	7.3
20	3/4	±1.00	60	±1.8	26	74	16	12500	314	503	9
22	7/8	±1.10	66	±2.0	28.6	81.4	18	15000	380	608	10.9
26	1	±1.30	78	±2.3	33.8	96.2	21	21200	531	849	15.2
32	1-1/4	±1.60	96	±2.9	41.6	118	26	31500	804	1290	23

About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.

We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
