FF-T-276B Mild Steel 3 Inch Thimble Wire Rope Sling ,Thimble Eye Sling

Ask Lasest Price
Brand Name :	Anfeng / AF
Model Number :	TUH-24
Certification :	CE, GS, ISO 9001
Price :	Call or Email for quote
Payment Terms :	T/T, L/C
Supply Ability :	10,000 pcs per month
Delivery Time :	Within 45 days after order confirmation

Add to Cart

Product Details
Company Profile

FF-T-276B Mild Steel 3 Inch Thimble Wire Rope Sling ,Thimble Eye Sling

3" Wire Rope Sling with Heavy Duty Thimble, Eye Sling, greater protection against wear and deformation of the wire rope eye

Wire Rope Sling and Wire Rope attachment

Product Description

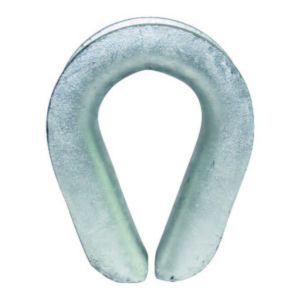

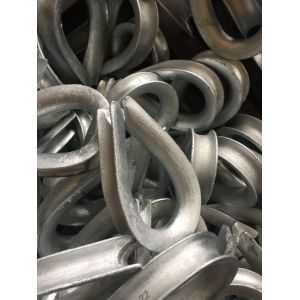

Our Heavy Duty Thimble is designed for use with high-performance wire rope. The thimbles meet the performance requirements of Federal Specification FF-T-276B Type III.

The thimble creates a 'hard' eye at wire rope ends, making it features greater protection against wear and deformation of the wire rope eye. Our galvanized Heavy Duty Thimble provide smooth and even grooves, maximum strength in critical areas, and the proper bending radius for the rope.

Important features:

- Recommended used for wire ropes sized from 1/8" to 3-1/2".

- Galvanized and zinc plated.

- To assemble, place thimble into loop end, insert both ends of wire into clip saddle and tighten nuts until secure.

FF-T-276B Mild Steel 3 Inch Thimble Wire Rope Sling ,Thimble Eye Sling

Specification

Product code	Rope diameter		Dimensions (mm)								Weight (kg)
Product code	(in.)	(mm)	A	B	C	D	E	F	G	H	Weight (kg)
TUH-01	1/8	3	49.5	33.5	28.9	17.7	6.3	4.0	1.29	3.5	0.03
TUH-02	3/16	5	49.5	33.5	28.9	17.7	6.3	4.0	1.29	3.5	0.03
TUH-03	1/4	6	55.6	41.4	38.1	22.3	10.4	7.1	1.52	5.8	0.03
TUH-04	5/16	8	63.5	47.7	45.9	26.9	12.7	8.6	2.03	7.1	0.05
TUH-05	3/8	10	73.5	54.1	54.1	28.7	16.0	10.4	2.79	8.6	0.11
TUH-06	7/16	11	82.5	60.4	60.4	31.7	18.2	11.9	3.30	9.6	0.14
TUH-07	1/2	13	92.2	69.8	69.8	38.1	20.5	13.4	3.56	10.4	0.23
TUH-08	9/16	14	92.2	69.8	68.3	38.1	22.3	15.0	3.56	10.4	0.23
TUH-09	5/8	16	107.9	82.5	79.5	44.4	24.6	16.7	4.06	12.7	0.34
TUH-10	3/4	19	127.0	92.2	99.7	50.8	31.0	19.8	5.59	16.7	0.67
TUH-11	7/8	22	139.7	107.9	107.9	57.1	35.0	23.8	5.59	19.0	0.79
TUH-12	1	26	155.7	114.3	125.4	63.5	39.6	26.9	6.35	22.3	1.24
TUH-13	1-1/8--1-1/4	28-32	177.8	130.3	149.3	73.1	45.9	33.2	6.35	28.7	1.81
TUH-14	1-1/4--1-3/8	32-35	230.1	165.1	172.9	88.9	55.6	36.5	9.65	28.7	3.71
TUH-15	1-3/8--1-1/2	35-38	228.6	158.7	181.1	88.9	65.0	39.6	12.70	28.7	5.33
TUH-16	1-5/8	41	285.7	203.2	206.5	101.6	69.0	43.6	12.70	35.5	7.71
TUH-17	1-3/4	44	309.6	228.6	215.9	114.3	72.1	46.7	12.70	33.2	8.05
TUH-18	1-7/8--2	48-51	384.3	304.8	263.6	152.4	78.4	53.0	12.70	38.1	11.34
TUH-19	2-1/4	57	435.1	355.6	301.7	177.8	92.2	60.4	16.00	41.4	17.91
TUH-20	2-3/8	60	457.4	377.9	301.7	177.8	95.9	63.9	16.00	43.0	22.20
TUH-21	2-1/2	64	522.0	399.1	316.2	187.8	102.6	66.6	16.00	45.5	28.50
TUH-22	2-3/4	70	496.2	418.2	320.0	187.8	109.6	73.6	18.20	47.9	30.12
TUH-23	2-7/8	73	522.0	443.0	330.0	196.0	116.0	76.0	19.88	50.8	36.00
TUH-24	3	76	540.0	465.0	330.0	196.0	120.0	80.0	19.88	51.6	38.50
TUH-25	3-1/2	90	660.0	505.0	380.0	240.0	139.0	95.0	21.88	54.6	44.00

About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.

We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
